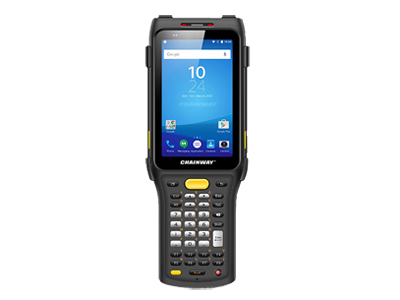

The Chainway C61 is a rugged mobile computer designed for industrial applications in warehousing, logistics, and manufacturing. It offers high-speed processing, advanced barcode scanning, and flexible connectivity to enhance productivity in demanding environments.
Key Features:
-
Ultra-Rugged Design – IP65-rated for dust and water resistance, withstanding multiple drops up to 1.8 meters (6 feet).
-
Powerful Scanning – Equipped with optional Zebra SE4710 or SE4850 scan engines, capturing 1D and 2D barcodes from close range to over 70 feet (21 meters) away.
-
High-Speed Processing – Features a Qualcomm octa-core processor with Android 11 or Android 13.
-
Long Battery Life – 6700mAh removable battery, with an optional 5200mAh pistol grip battery for extended operation.
-
Flexible Connectivity – Supports Wi-Fi 6, Bluetooth 5.1, NFC, and optional 4G LTE.
-
Customizable Keypad – Available in 27-key, 37-key, and 47-key configurations.
-
RFID & NFC Capabilities – Optional UHF RFID reader for smart label applications.
Ideal for inventory management, order fulfillment, and asset tracking
Processor
Qualcomm 1.8 GHz Octa-core
Memory (RAM/ROM)
3 GB + 32 GB / 4 GB + 64 GB
Operating System
Android 9.0; GMS, 90-day security updates
Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported
4-inch high definition display, 800*480
Multi-touch panel, gloves and wet hands supported
IP65 certified
Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range.
13.05 oz. / 370 g
202.0 x 72.5 x 32.0 mm / 7.95 x 2.85 x 1.26 in.
| WLAN | Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA; |
| Bluetooth | Bluetooth 5.1 |
| Vo-LTE | Support Vo-LTE HD video voice call |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
2D Imager Scanner - Optional
Robust gummistövel
Robust gummistövel, rundstrålande skyddad. Den kan samexistera med handrem och stödja CRD-C61-RBC/CRD/C61-RBCE laddningsvagga.
Pistol grip for C61
Snap-On trigger handle, use with optional pistol grip battery.
Laddningsvaggamed ethernet för enhet
Laddningsvagga för enhet, använd med DCPWE-12V2A-XX-adapter. CRD-C61-RBCE är en avancerad CRD-C61-RBC, w/sync, w/, ethernet, w/DC. Crable-koppen har en insats som måste tas bort innan du sätter i C61 med Rugged Boot.
Device charging cradle
Device charging cradle.
** Use with DC Power Adapter 12V/2A (Regional)
Device Charging insert
Device inset for charging cradle.
6700mAh Li-ion Battery
6700mAh Li-ion battery 3.8V output.
Charging Cradle for Pistol Battery
Pistol grip battery charging cradle - 2 slots,
** Use with DC Power Adapter 12V/2A (Regional)
Charging Cradle for Main Battery
Main battery charging cradle - 2 slots
** Use with DC Power Adapter 12v / 2A (Regional)
Handstrap for C61
Durable attachable hand strap
Charging Base with 4 slots
The base of 4-Piece Charging Cradle
* Use with DC Power Adapter 12v 5A-XX (Region Specific)
5200mAh Pistol grip Battery
Pistol battery - 5,200mAh
DC Power Adapter (EU)
DC Power Adapter - EU Region
Specification:
Input: 100-240V
Output: 5V / 2A
USB-Cable Type-C
1.0 meter Type-C charging cable
Quick-Charge Adapter (EU)
DC Power Adapter - EU Region
Specification:
Input: 100-240V
Output: 5V / 2A
**Use with USB Type-C cable
Type-C Power Adapter (EU)
DC Power Adapter - EU Region
Specification:
Input: 100-240V
Output: 5V / 2A
**Use with USB Type-C cable
