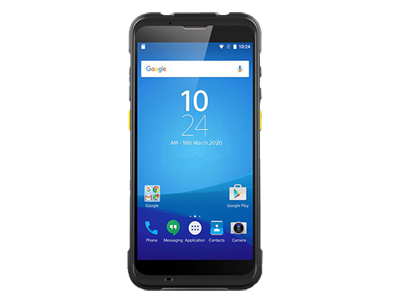

C66

The Chainway C66 is a rugged mobile computer designed for industrial applications in warehousing, logistics, and manufacturing. It offers high-speed processing, advanced barcode scanning, and flexible connectivity to enhance productivity in demanding environments.

Key Features:

Ultra-Rugged Design – IP65-rated for dust and water resistance, withstanding multiple drops up to 1.8 meters (6 feet).
Powerful Scanning – Equipped with optional Zebra SE4710 or SE4850 scan engines, capturing 1D and 2D barcodes from close range to over 70 feet (21 meters) away.
High-Speed Processing – Features a Qualcomm octa-core processor with Android 11 or Android 13.
Long Battery Life – 4420mAh removable battery, with an optional 5200mAh pistol grip battery for extended operation.
Flexible Connectivity – Supports Wi-Fi 6, Bluetooth 5.1, NFC, and optional 4G LTE.
Customizable Keypad – Available in 27-key, 37-key, and 47-key configurations.
RFID & NFC Capabilities – Optional UHF RFID reader for smart label applications.

Ideal for inventory management, order fulfillment, and asset tracking, the C66 ensures high-speed scanning and reliable performance.

Product Specification

Processor

Qualcomm 1.8 GHz Octa-core

Memory (RAM/ROM)

3GB + 32GB / 4GB + 64GB / 6GB + 128GB

Operating System

Android 9.0

Display

5.5-inch high definition full display (18:9) , IPS 1440 x 720

Rugged properties

IP65
Drop spec 1.8m normal
Drop spec 2.4m with Corner Cleats installed

Weight

287 g / 10.12 oz. (device with battery);
297 g / 10.47 oz. (device with battery, Fingerprint / Built-in UHF)

Dimensions

160.0 x 76.0 x 15.5 / 17.0mm / 6.3 x 2.99 x 0.61 / 0.67 in.

Communications

WLAN - 802.11 a/b/g/n/ac/ax-ready
WWAN - (Europe, Asia) 2G: 3G: 4G
Bluetooth 5.1
Vo-LTE -Support Vo-LTE HD video voice call
GNSS - GPS/AGPS, GLONASS, ( BeiDou, Galileo internal antenna)
