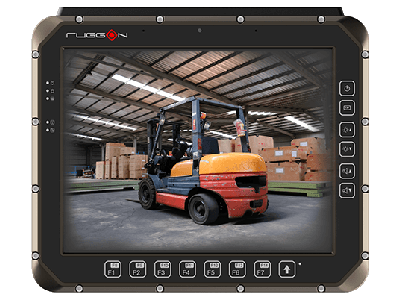

The VULCAN X vehicle mount

The VULCAN X vehicle mount can be used in all lighting conditions and meets the latest demands from various industries with extreme durability and compatibility for future challenges.

As digitalization and automation advance in industrial applications, 5G readiness is no longer just a buzzword for the RuggON VULCAN X. With additional support for Wi-Fi fast-roaming, the vehicle mount can connect all nodes in extremely fast and smooth autonomous guided vehicle (AGV) networks.

VULCAN X has been designed to withstand outdoor applications that are exposed to shocks and vibrations, handling operation from day to night and threats like salt corrosion and fog/frost interference. Certified to MIL-STD-810H, the vehicle mount is also made with sturdy metal contacts to resist oil and grease.

Product Specification

Processor

Intel® Core™ i5-8365UE 1.6GHz
Intel® Celeron® 4305UE 2.0GHz

Memory

4GB upp till 32GB

Storage

Operating System

Windows 10 IoT Enterprise

Display

10.4-inch 1024 x 768 XGA
1200 nits brightness supports auto-dimming
5-wire resistive touch supports defrost / defog function
PCT by request

Rugged Properties

IP66
MIL-STD-810H

Weight

3.2kg

Dimensions (L×W×H)

278 x 234 x 57 mm

Ports / Connectors

RS-232 with power supported x 1
RS-232(TX,RX)/422/485 x 1, RS-232(TX,RX) x 2, RS-485 x 2
Gigabit Ethernet x 2
USB 3.1 x 1, USB 2.0 x2, USB 3.1 type C x 1 (DisplayPort Alt Mode supported)
Micro SD slot x 1, Micro SIM slot x 2
Optional CAN bus 2.0B x 2 or SAE J1939 x 1
DI x 2, DO x 2
Mic in x 2, Line out (L/R) x 1
Video input
